DAHUA

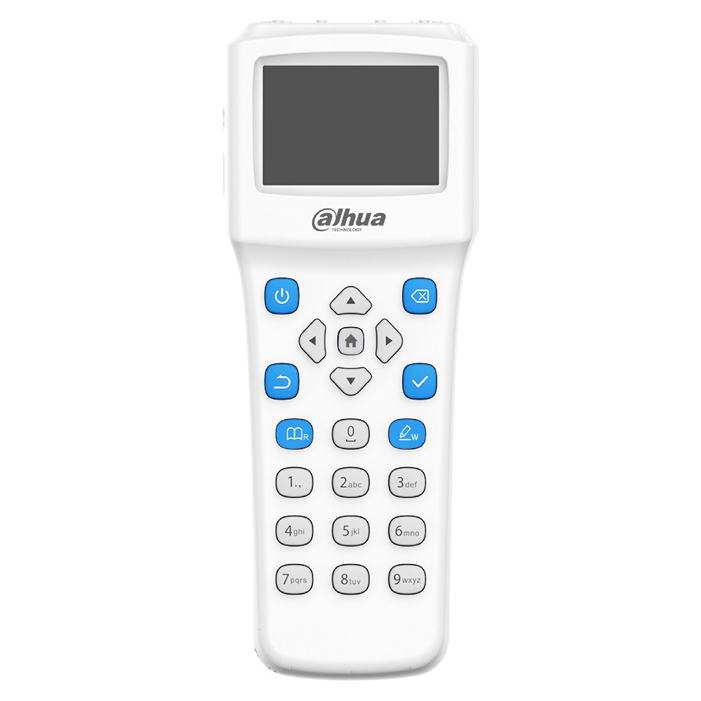

Codificador de direcciones con pantalla DHI-HY-BM-1712
$667.000IVA incluido
Bajo pedido · consúltanos tiempos
Cotizar por WhatsAppSolicitar información
- Línea
- DAHUA
- Referencia
- DHI-HY-BM-1712
Automatically address +1 when addressing devices consecutively
After writing the address successfully, there will be a "Di" tone. If the
Device statistics: Support device statistics for the entire bus system and
Start/stop: Support device start/stop test
Line Troubleshooting: Measure line voltage and resistance for various
Low-power sleep: Intelligent shutdown without operation for a long
Portable and miniature design: Easy to carry and operate, flexible in use
Functional keys with sound: Press any key to light up the LCD screen
ESPECIFICACIONES TÉCNICAS
| Working Power | DC 6V |
| Output Voltage | DC 16V or DC 24V |
| Temperatura de funcionamiento | –10°C to +55°C (+14°F to +131°F) |
| Temperatura de almacenamiento | –20°C to +65°C (–4°F to +149°F) |
| Humedad de funcionamiento | ≤ 95% RH (sin condensación) |
| Color | Blanco |
| Dimensiones | 47.3 mm×160.0 mm×31.4 mm (1.86"×6.30"×1.24") |
| Peso | 167 g (0.37 lb) |
| Type | Part Number Description |
| Encoder | DHI-HY-BM-1712 Encoder |
